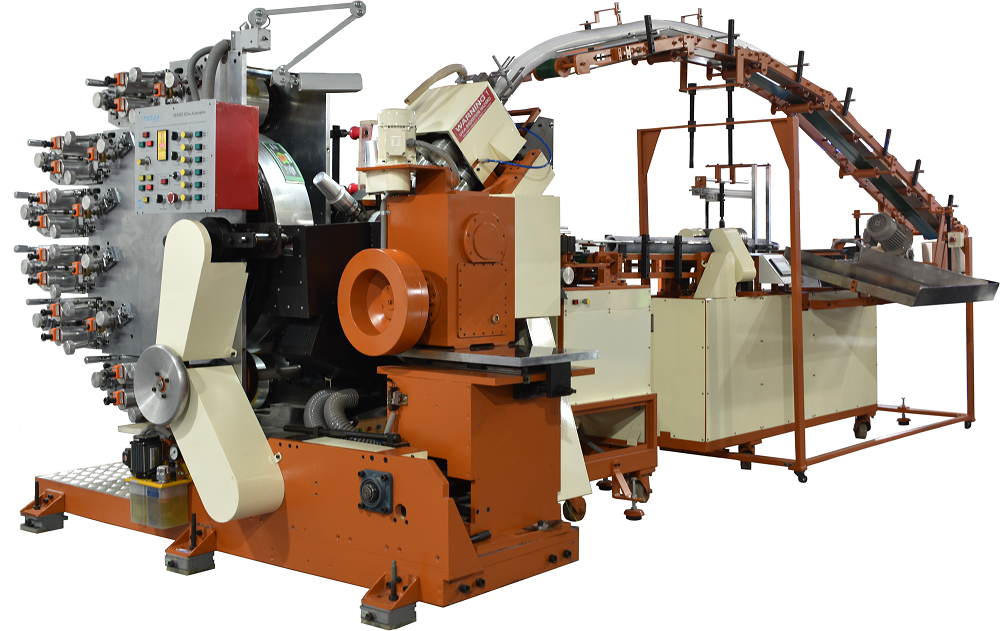

M-6250M Dry Offset Printing Machine
The M-6250M Dry Offset Printing Machine has been specially designed to deliver high-quality 6-color decoration on disposable containers manufactured from HIPS and PP materials. This advanced machine ensures sharp image reproduction and is capable of printing complex graphics including vignettes and half-tones with excellent clarity.
Dual form rollers combined with electronic ink flow adjustment ensure precise ink control and consistent print quality. The sturdy and precision-engineered construction guarantees reliable performance while producing attractive and vibrant decoration on containers.
The machine incorporates a UV-OMC curing system that instantly cures the printed containers, enabling high production speeds. Optional features such as automatic container re-stacking and Corona treatment systems can be integrated to further enhance productivity and print adhesion.
The optional Signature Series upgrade enables full automation of the process. This upgrade includes an automated stack buffer for continuous container feeding into the press as well as a fully automated re-stacking system with cup counting and stack segmentation.
The machine is equipped with a user-friendly control system that is easy to operate and maintain. Built using high-quality industrial components, the system ensures reliable press management with minimal maintenance requirements.
The press operates using the Series 625 automation platform manufactured by TESLA Controls. This automation system is fully user-maintainable and designed for operational convenience. Detailed service documentation and on-call technical support ensure that operators can quickly resolve issues and resume production with minimal downtime.
The M-6250M Dry Offset Printing Machine is built for continuous high-volume production and long operational life. Manufactured to strict engineering standards with standardized components, it delivers dependable performance while requiring only basic routine maintenance.
Technical Specifications
Standard Features
- Automated container in-feed system
- UV-OMC curing system
- Tesla Series 625 control automation
Optional Features
- Integration of Corona Treater
- Flame treatment system
- No-cup detection with automatic shutdown
The Signature Series upgrade provides automated container stack loading, automatic re-stacking with container counting, and stack segmentation for improved production efficiency.

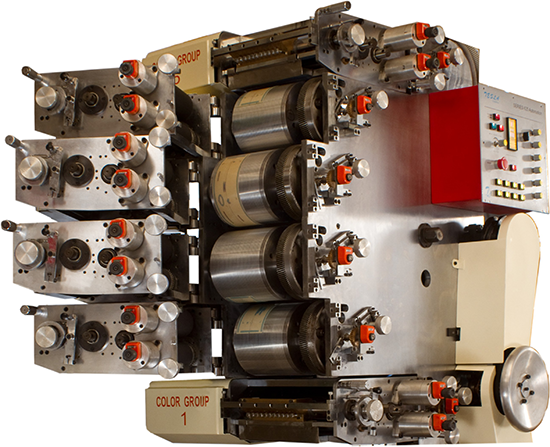

| Offset Unit | 6 Color Modular |
| Min / Max Rim Diameter | 50 / 150 mm |
| Max Print Width | 150 mm |
| Max Print Length | 375 mm |
| Min / Max Taper | 2 / 7 Degrees |
| Press Speed | 250 CPM |
| Power Utility | 11.25 kW – 415V – 50Hz |
| Air Utility | 800 Lit/min @ 6 Bar |
| Machine Footprint (L/W/H) | 3000 × 3000 × 2500 mm |
