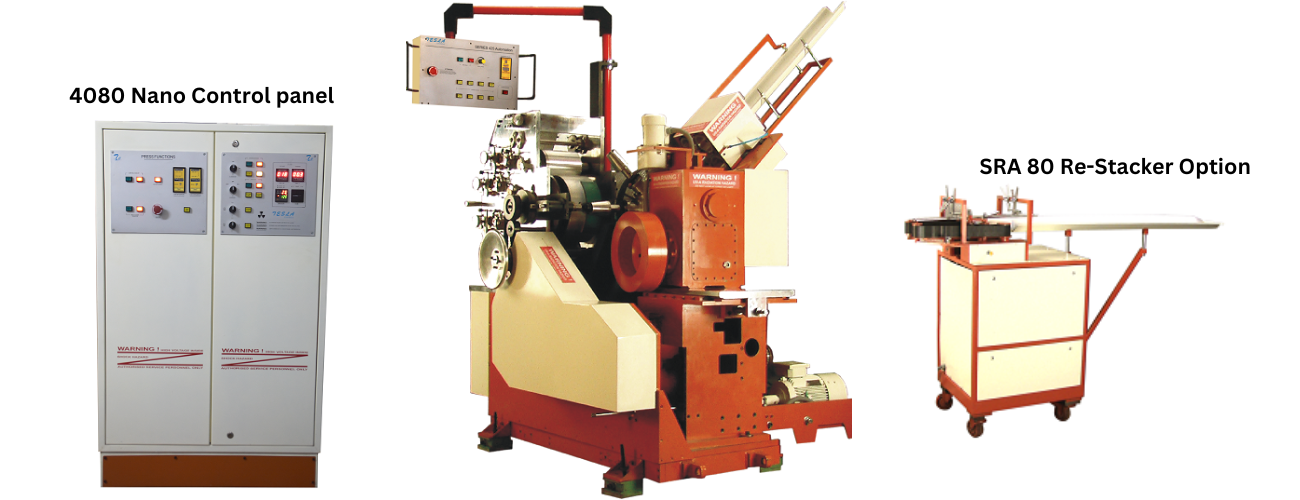

Hyden 4080 Nano Dry Offset Printing Machine
The Hyden 4080 Nano Dry Offset Printing Machine is a compact four color press designed for printing on paper cups, injection molded containers, and thermoformed plastic disposable containers used in food and beverage packaging industries.
This machine has been specially developed for businesses requiring low production volumes and small batch printing. Despite its compact size, the 4080 Nano offers the same engineering quality and reliability found in the larger Hyden Dry Offset Printing Machines.
The 4080 Nano is a fully automatic four color printing press capable of producing excellent print quality while maintaining precise color registration. The system operates using solvent based inks and features a heat drying conveyor to cure printed containers efficiently.
An optional automatic re-stacking system enables smooth handling and collection of printed containers. With its small footprint and compact design, the press requires minimal floor space and is extremely easy to install and operate in limited production environments.
Accurate seam detection and positioning are achieved through the TESLA Controls Seam Seeker© technology. This system allows start point registration when printing on paper cups, ensuring that printing begins in alignment with the cup seam for consistent results.
The 4080 Nano is manufactured using precise machining techniques and high-quality materials that ensure durability and long service life. The TESLA Controls 408PC Control System is designed to be simple, reliable, and user-serviceable, eliminating the need for specialized maintenance personnel.
By combining precision engineering with dependable performance, the Hyden 4080 Nano delivers excellent print reproduction with consistent results. Built with the same care and dedication used in Hyden’s most advanced presses, this machine offers reliable operation, long-term durability, and low maintenance costs.
Technical Specifications
Standard Features
- Automated container in-feed system
- UV-OMC curing system
- Tesla Seam Seeker for paper cup seam orientation
Optional Features
- SRA-80 Re-Stacker
- Corona Treatment Unit for plastic cups
- No-Cup No-Print system
| Offset Unit | 4 Color Integral |
| Min / Max Rim Diameter | 50 / 92 mm |
| Max Print Width | 125 mm |
| Max Print Length | 235 mm |
| Min / Max Taper | 2 / 7 Degrees |
| Press Speed | 80 CPM |
| Power Utility | 5 kW – 415V – 50Hz |
| Air Utility | 300 Lit/min @ 6 bar |
| Machine Footprint (L/W/H) | 1600 x 1800 x 2200 mm |
